Eikon · Recording Gear

5-Piece Drum Microphone Set with Case

Item DMH5XL · Designed in Italy

A five-piece drum microphone set with a bass drum mic, three percussion mics and a cymbal mic, packed in an ABS case.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Essential drum miking

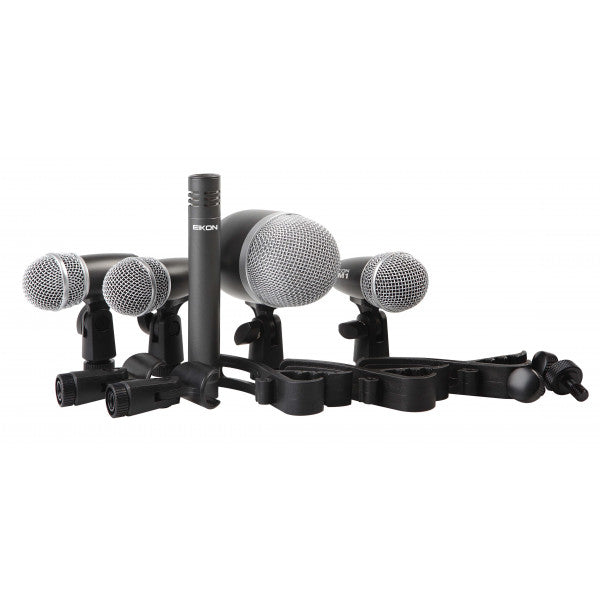

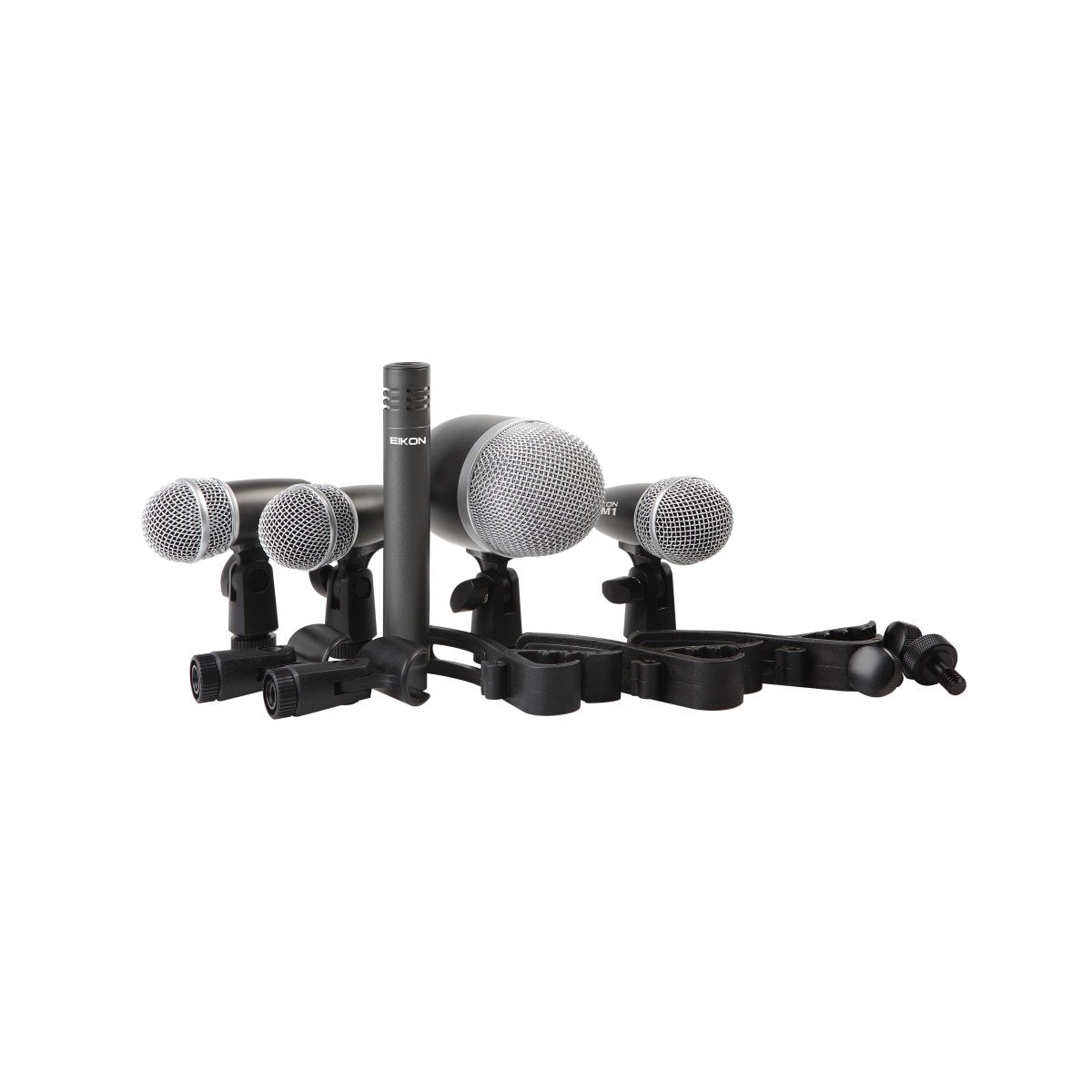

The DMH5XL gathers five Eikon microphones for a compact drum kit, packed in a sturdy ABS carrying case. A DM12 handles the bass drum, three DM1 mics cover snare and toms, and a CM602 condenser takes the cymbals or hi-hat.

In the box

  • DM12 bass drum dynamic microphone (1)
  • DM1 percussion dynamic microphones (3)
  • CM602 cymbal condenser microphone (1)
  • Microphone holders (3)
  • ABS carrying case

Microphone highlights

  • DM12: super-cardioid pattern, fast transient response and extended low end
  • DM1: cardioid pattern, high gain before feedback and a compact body that reduces stage clutter
  • CM602: permanently polarized condenser capsule that handles high SPL for close miking (48V phantom power)
  • Internal shock mounts and hardened steel mesh grilles on the DM12 and DM1

Specifications

The details that matter.

Contents
1 x DM12, 3 x DM1, 1 x CM602, 3 x microphone holders, ABS carrying case

DM12 Bass Drum Microphone

Element
Moving coil dynamic
Polar Pattern
Uni-directional (super-cardioid)
Frequency Response
50 - 15000 Hz
Max SPL for 1% THD
152 dB (calculated)
Impedance
500 Ω

DM1 Percussion Microphone

Element
Moving coil dynamic
Polar Pattern
Cardioid
Frequency Response
50 - 16000 Hz
Max SPL for 1% THD
135 dB
Impedance
500 Ω

CM602 Cymbal Microphone

Type
Back electret condenser
Polar Pattern
Cardioid
Frequency Response
50 - 18000 Hz
Max SPL for 1% THD
130 dB
Impedance
250 Ω
Power Requirement
48 V phantom power

Shipping

Carton (L x W x H)
18 x 13 x 5 in (46 x 33 x 13 cm)
Shipping weight
5 lb (2.2 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
