• Eikon EKSBIPRO USB Audio Interface (192 kHz)

Eikon · Recording Gear

USB Audio Interface (192 kHz)

New · Item EKSBIPRO · Designed in Italy

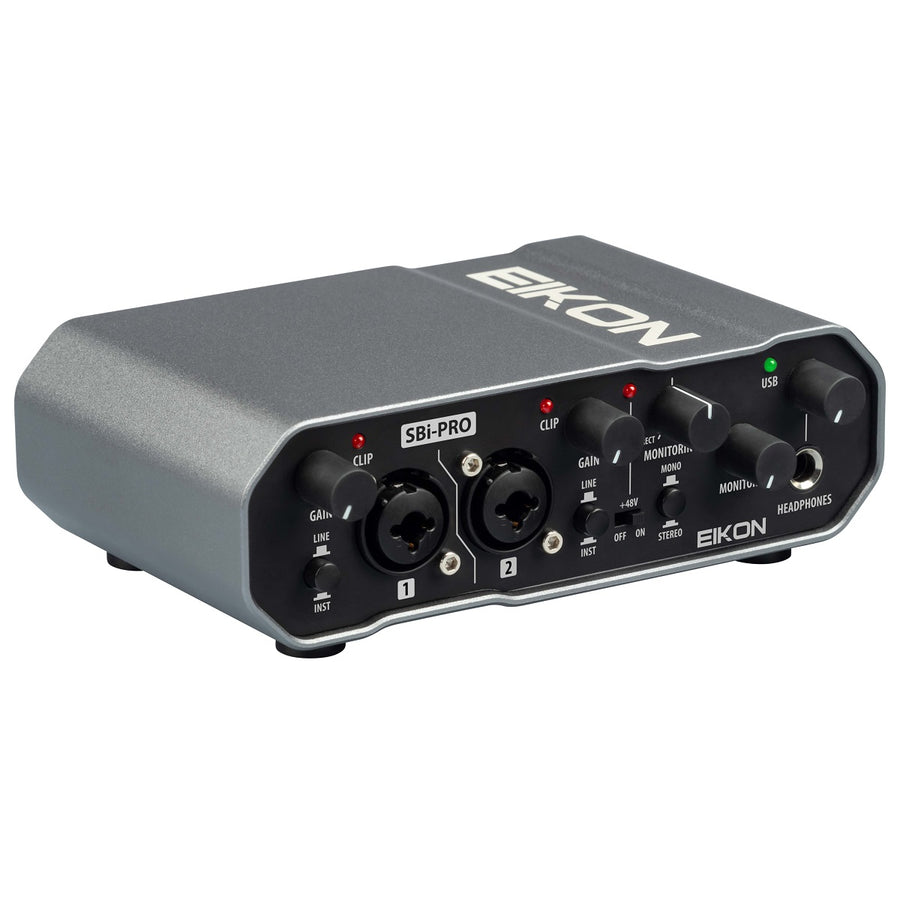

A two-input USB audio interface with dual XLR/TRS inputs, 24-bit/192 kHz conversion and zero-latency monitoring in an aluminum chassis.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Studio quality anywhere

The EKSBIPRO is a USB audio interface for home or mobile recording, live streaming and podcasting. High-grade components and premium circuitry sit in a compact, rugged design. It serves musicians, songwriters, content creators and podcasters.

Inputs and outputs

  • Two XLR/TRS inputs with HI-Z switch, for recording vocals and an instrument together or stereo sources
  • High-definition mic preamps with extended dynamic range and 48V phantom power
  • 2-in/2-out, 24-bit/192 kHz USB 2.0 interface
  • Analog outputs for studio monitors
  • Headphone output with separate level control
  • Mini-jack AUX input/output for recording or podcasting directly on a tablet or smartphone

Monitoring and power

  • Zero-latency direct monitoring with stereo/mono selector and a mix control between inputs and DAW playback
  • USB bus-powered for easy mobile recording
  • Rugged, road-proof aluminum chassis

Specifications

The details that matter.

Manuals & Downloads

Microphone Preamp

Type
XLR female, balanced
Frequency Response (±3.0 dB)
10 Hz to 22 kHz
Input Impedance (Balanced)
1.32 kΩ
Gain Control Range (± 1 dB)
0 dB to 45 dB
Phantom Power (±2 VDC)
+48 VDC

Line Input

Type
JACK ¼" TRS female, balanced
Input Impedance
15 kΩ

Instrument Input

Type
JACK ¼" TS female, unbalanced
Input Impedance
1 MΩ

Line Outputs

Output Impedance
600Ω

Headphone Output

Type
JACK ¼" TRS active stereo
Maximum Output
50 mW/ch. @ 32Ω Load
Frequency Response (±1.0 dB)
10 Hz - 25 kHz

Digital Audio

Bit Depth
16 / 24 /32
Reference Level for 0 dBFS
+10 dBu
Power
USB bus-powered

Physical

Height
52 mm (2.05")
Depth
106 mm (4.17")
Width
160 mm (6.30")
Weight
0.55 kg (1.21 lbs)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
